Quick Details

  • Brand Name: ACME
  • Model Number: KDGH series
  • Place of Origin: Hubei, China (Mainland)
  • Application: Cooking Fuel
  • Calory (J): 100000000
  • Hydrogen Content (%): 1
  • Methane Content (%): 60
  • Nitrogen Content (%): 3
  • Sulphur Content (%): 1
  • Type: biogas plant
  • Capactiy: according to different need
  • Material of gas holder: pvc
  • Design of project: can be offered by supplier
  • Turnkey project: accepted
  • OEM: accepted
  • Suitable for: house use, small farms
  • Min power: 1kw
  • Plant automatic level: high level 1 man operating
  • Biogas operating pressure: Normal pressure

Packaging & Delivery

Packaging Details within seaworthy carton
Delivery Time Within 20-25days after receiving the payment

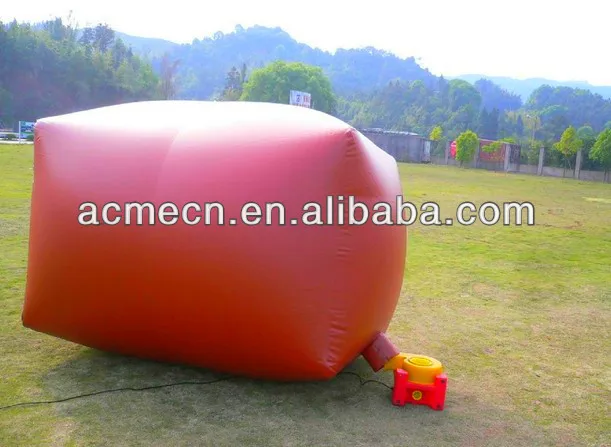

ACME Portable Biogas Digester with Soft PVC Digester

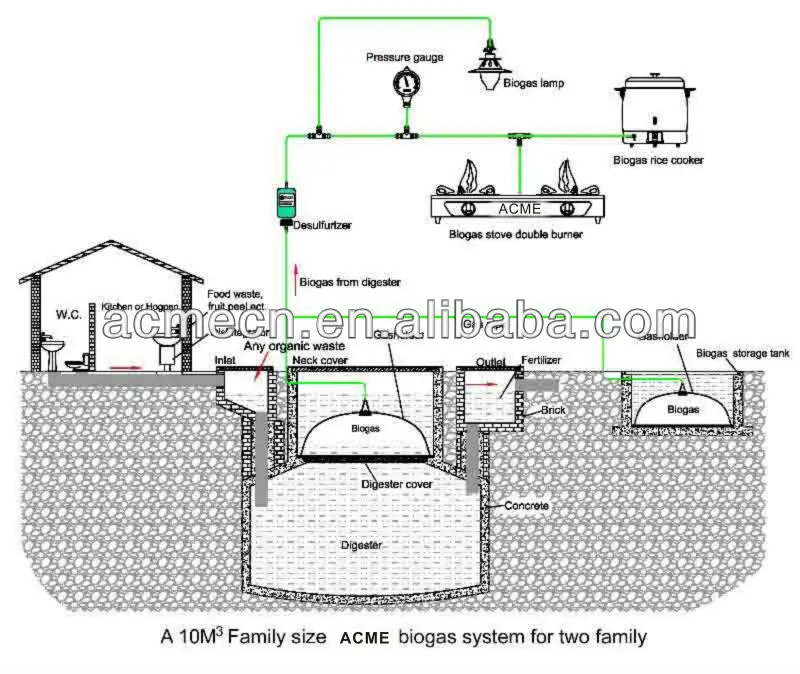

I. Structure Chart

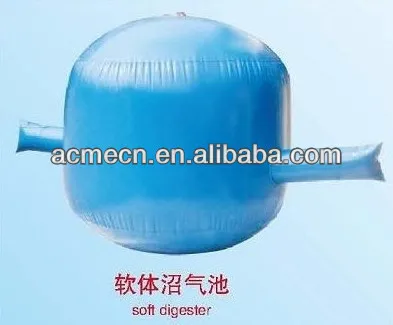

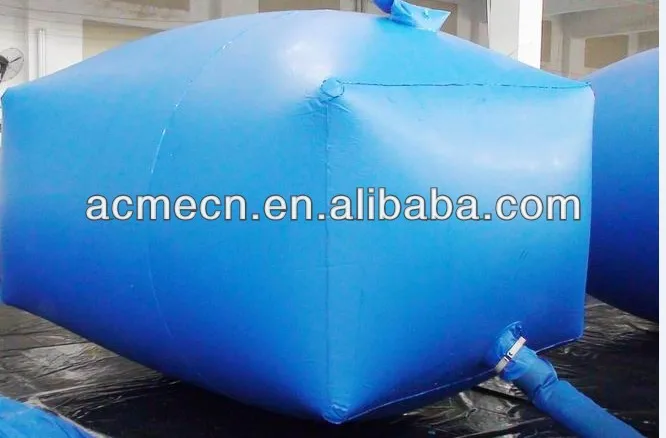

II. Introduction of Household Soft Biogas Digester



1. Material:







1. Two kinds of materials with different thickness for your choice,



Red mud composite membrane: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.8mm.



High strength industrial polyester damp net cloth: 0.8mm, 1.0mm, 1.2mm, 1.4mm.



Due to the chemical reactions in the digester we suggest the second material.



 2. Size, we can produce different sizes according to your need. Normally, 8 CBM and 10CBM biogas

digester will be enough for household plant.





2. Brief Introduction:

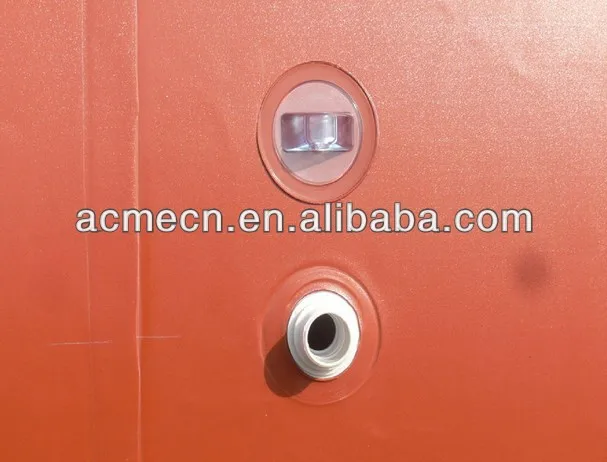

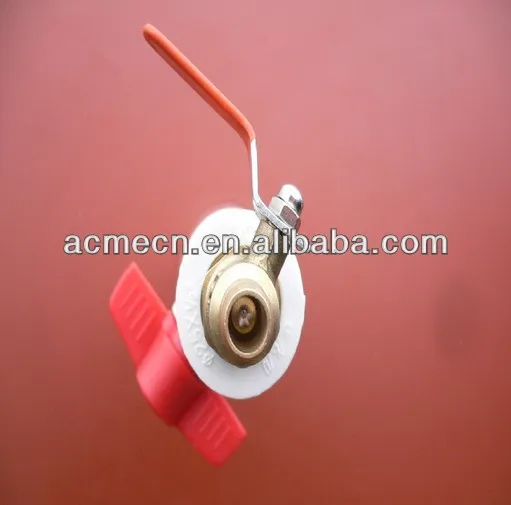

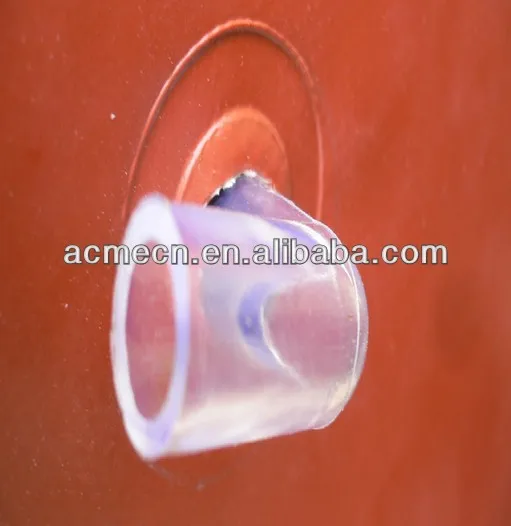

The digester is teapot shaped with gas outlet hole, feed inlet, and material outlet, with pipes assembled. The diameter of the feed inlet and material outlet both are 200-300mm, big enough for the material goes in/out smoothly. Meanwhile the feed inlet and the material outlet are whole

welded, not bolt connected, which makes it more light and better tightness.

Normally the digester can be installed under the ground, half under the ground, or on the ground, that depends on the

local environment.



3. Advantages:

A. long use life, normal use up to 15 years.

B. high temperature resistant (50°C)~(- 20°C), acid and alkali resistant, lightning protection, earthquake, ripstop, flame retardant.

C. built pool for 100% success rate.

D. venting rate is high, won't appear build pool air-leaks phenomenon.

E. high safety, no clear pool, no human dangerous.

F. effectively solve the problem of the Crusting

G. after the moving, can repeat to disassemble with only air.

H. short time limit, general just need 1 day can build the pool, and the next day can be put into use.

I. specialist himself, no need simple maintenance can begin.

J. built pool, the ground is flexible, can be built underground pool.

K. but fold, light weight, easy to transport and the costs is very low.



4. Tips for Household Biogas Digesting:

The material feed of household biogas project is normally divided into two types, one at a time feeding(staw), or continuous feeding(animal waste or human waste).

Take the continuous pig manure feeding household biogas plant for example (according to the daily temperature in south China), for a 8CBM soft digester the available fermentation volume is about 6CBM, then following will be the material we need to product biogas,

1). 1200kg pig manure(the Total Solid rate of pig manure is 18%)

2. 500kg prepared inoculum.

3). 3300kg water.

4). Because the digester is installed with the pigpen and the toilet so the daily feeding is automatic.

For you information: the Inoculum is for speeding up the biogas fermentation which is rich of Methane bacteria substance. Normally can be prepared by local material, 500kg inoculum can be produced by 250kg sludge and 250kg animal waste after 10 days sealing.

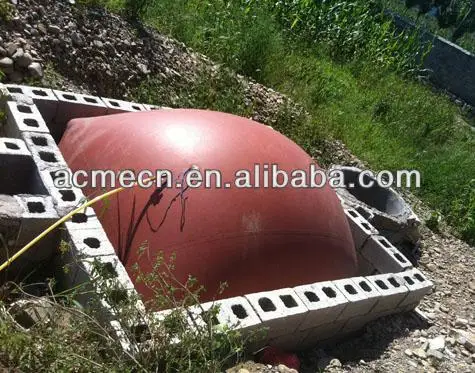

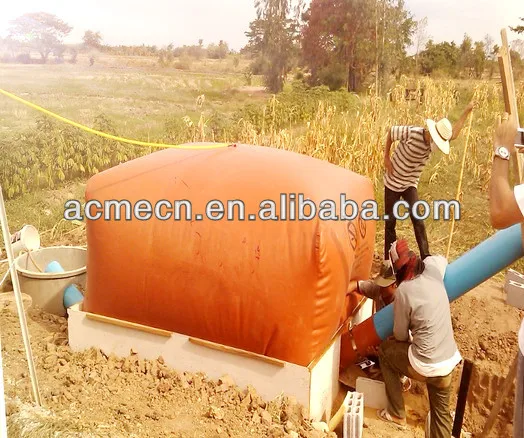

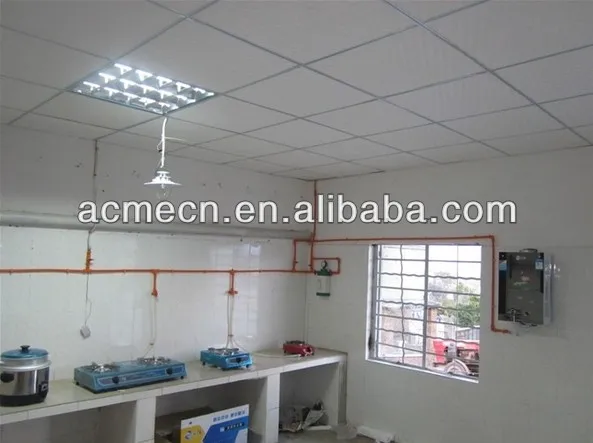

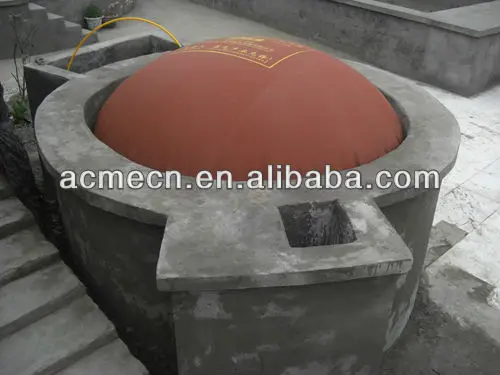

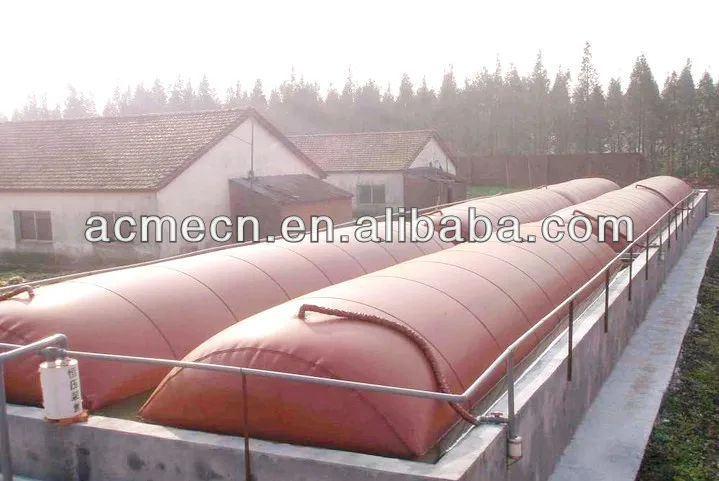

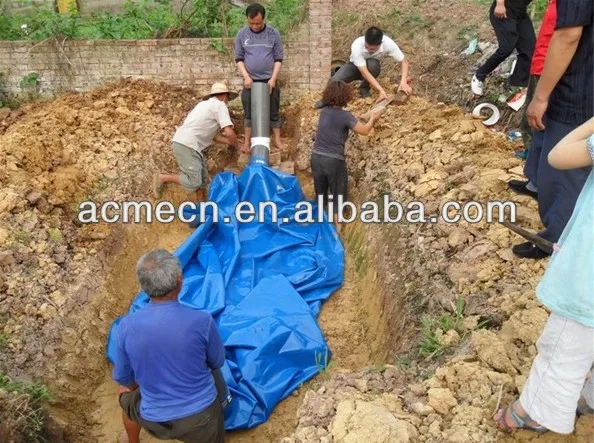

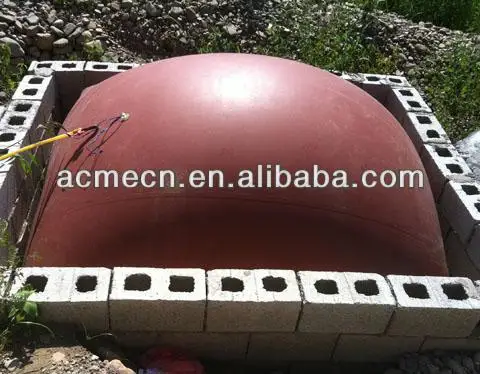

5. Following is the pictures of finished biogas digester our customer sent us for your reference.

















Looking for a qualified biogas project supplier?



ACME is a experienced biogas project supplier, we specialized in this field for many years with high reputation.

-ACME  supplies whole biogas plan according to your different budget.

-ACME offers the whole set of equipments and installing and after service.

-ACME provides both big biogas project equipments and family size biogas system.

-No matter you are a big investor or a small dealer, please come to ACME, we will offer the most suitable biogas program.
